Geo Tubes

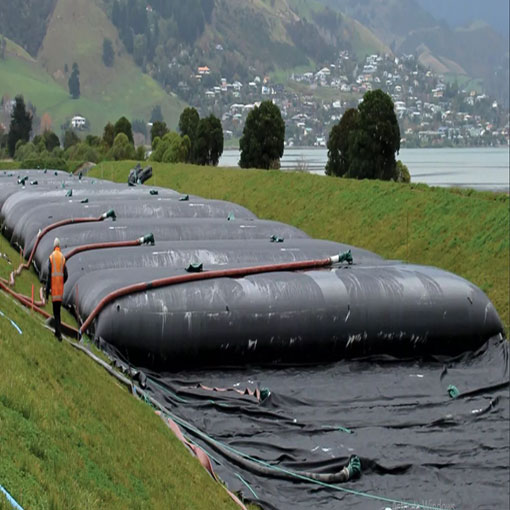

VT Geo Tubes are large containment systems in tubular forms made from high strength PP / PET Woven Geotextile. Geotextile Tubes are filled by the hydraulic pumping of local soil into the prefabricated Geotextile Tube. This leads to a flexible, monolithic and continuous structure that is highly resistant to water currents. Sand is widely used as the soil in-fill material because of its low compressibility but other hydraulically pumped soil types can be used.

VT Geo Tubes are made up of Geotextiles that has fine pore sizes so that water can easily exit and soil will remain infill in Geo Tube during the hydraulic filling stage. The Geotextile has high tensile strength to enable it to resist the tensile stresses occurring during hydraulic filling and maintain its structure shape. Regular sizes are made in length of 5, 10, 15, 20 & 30mtr and Dia 2.29mtr and 3.0mtr. We can make any size as per customer's requirement/ specification.
